Precision Dovetail Marking Gauge – Woodworking Layout Tool for Accurate Joinery

FEATURES

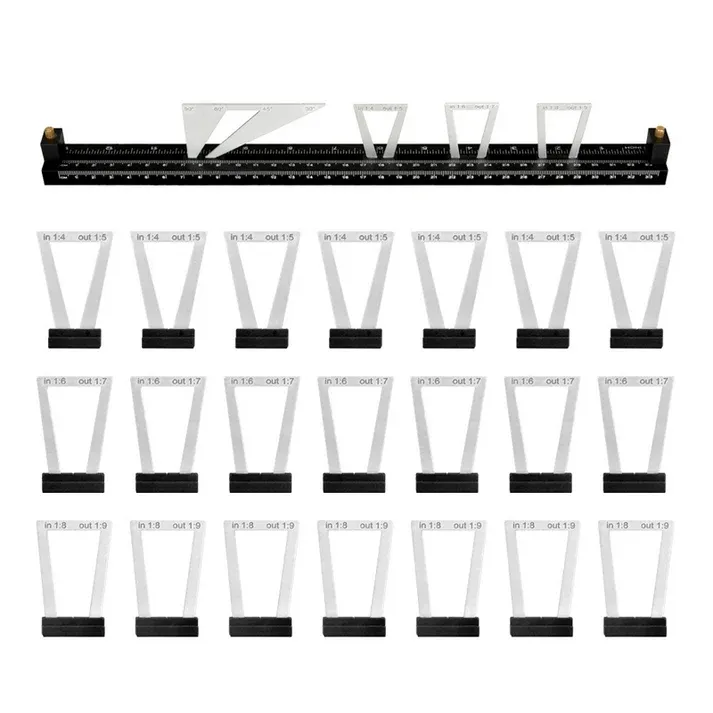

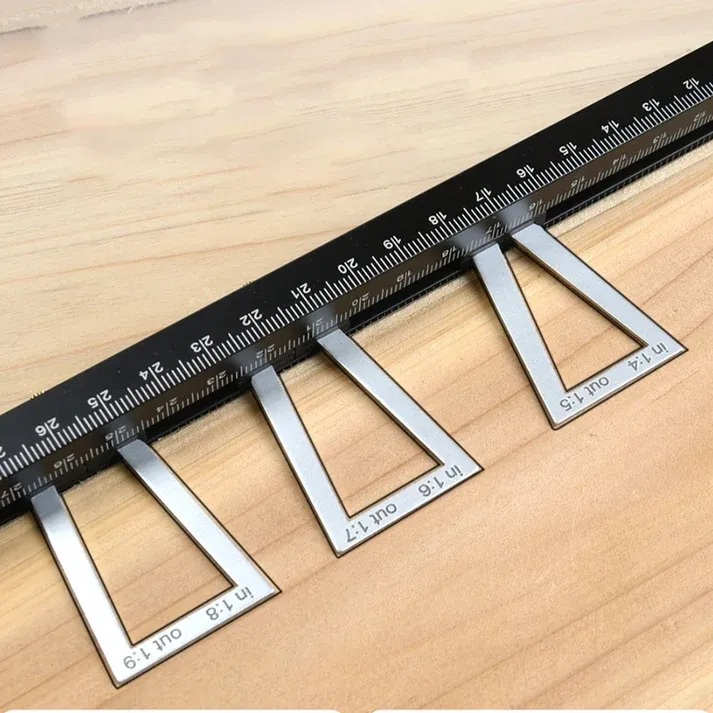

SIX DOVETAIL SLOPES - Offers multiple ratios from 1:4 to 1:9 to match various wood hardness, allowing you to create tight, secure, and professional-grade joint connections for any furniture project.

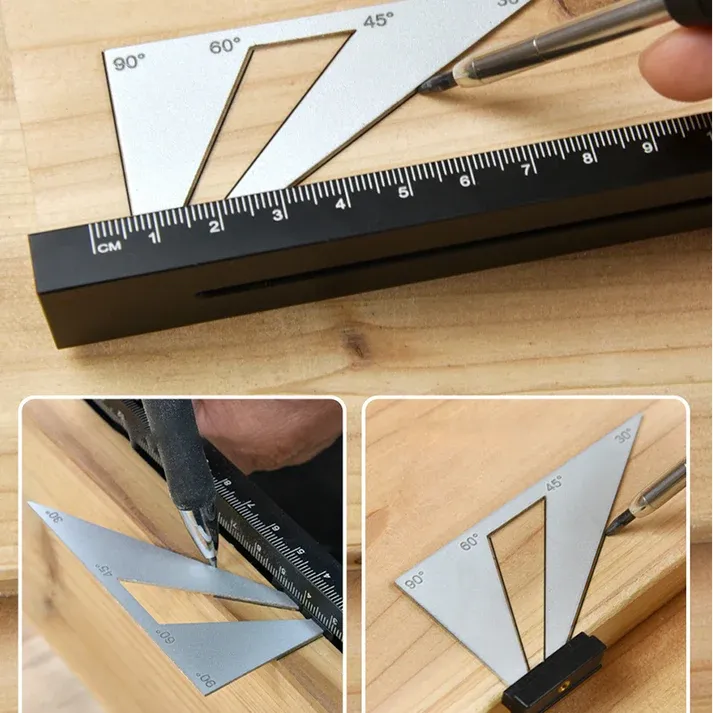

FOUR VERSATILE ANGLES - Features integrated 30, 45, 60, and 90-degree templates that slide smoothly along the track, helping you execute diverse woodworking layouts and precise joint designs with absolute ease.

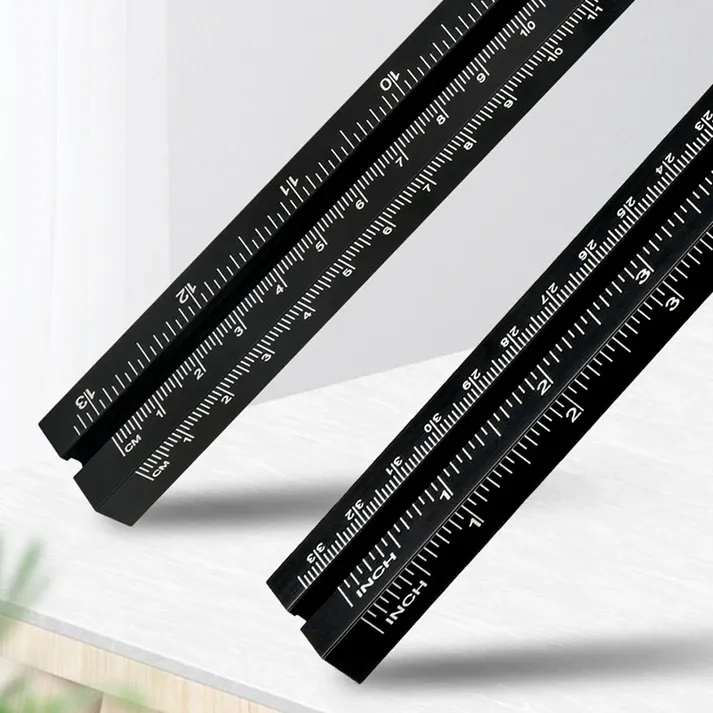

DUAL MEASUREMENT SCALES - Equipped with clear metric and imperial graduations on a wear-resistant black anodized surface, ensuring quick, error-free readings and saving valuable setup time during complex scribing tasks.

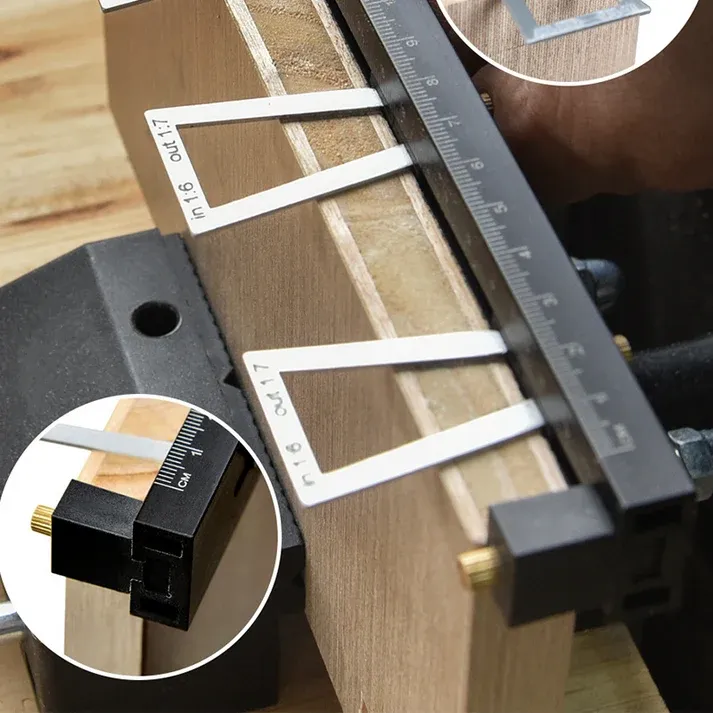

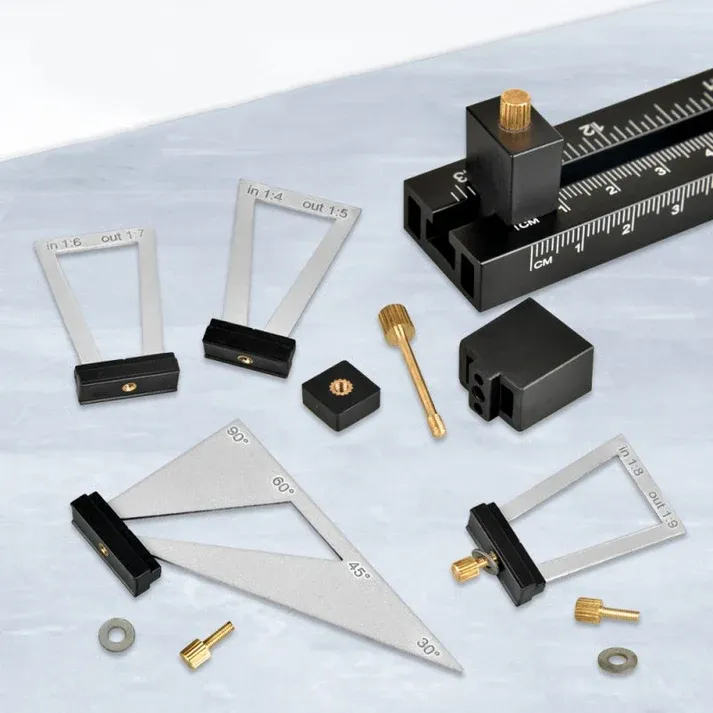

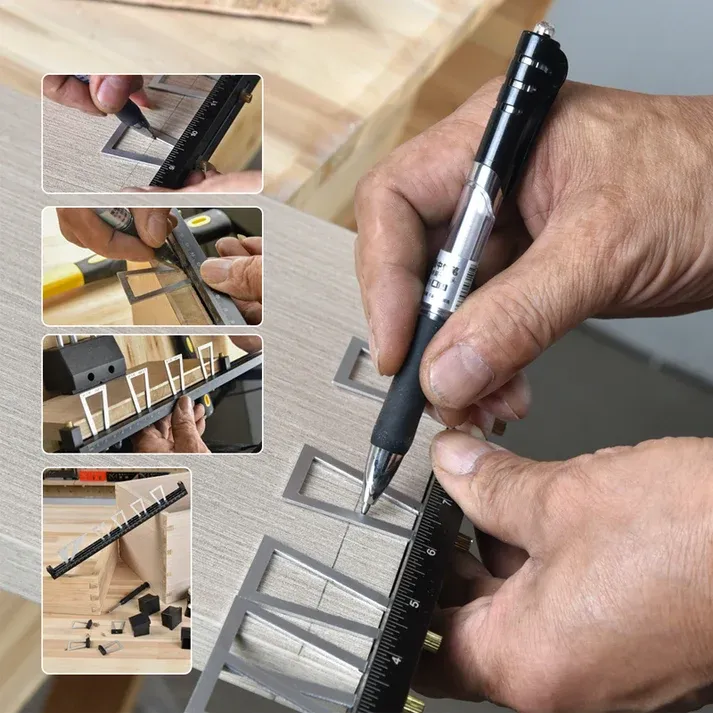

MOVABLE SLIDING STOPS - Includes adjustable positioning blocks that lock firmly in place on the track, preventing any unwanted deviation and enabling highly repeatable, uniform marking operations across multiple wood planks.

PREMIUM ALUMINUM ALLOY - Crafted from lightweight yet high-strength metal to resist deformation and wear, providing you with a reliable, long-lasting layout tool that maintains its accuracy over years of workshop use.

SPEC

Color: Black

Size: 350mm (13.78 inches) * 54mm (2.13 inches) * 25mm (0.98 inches)

Material: Aluminum Alloy

Template Thickness: 1.2mm (0.05 inches)

Rule Thickness: 11mm (0.43 inches)

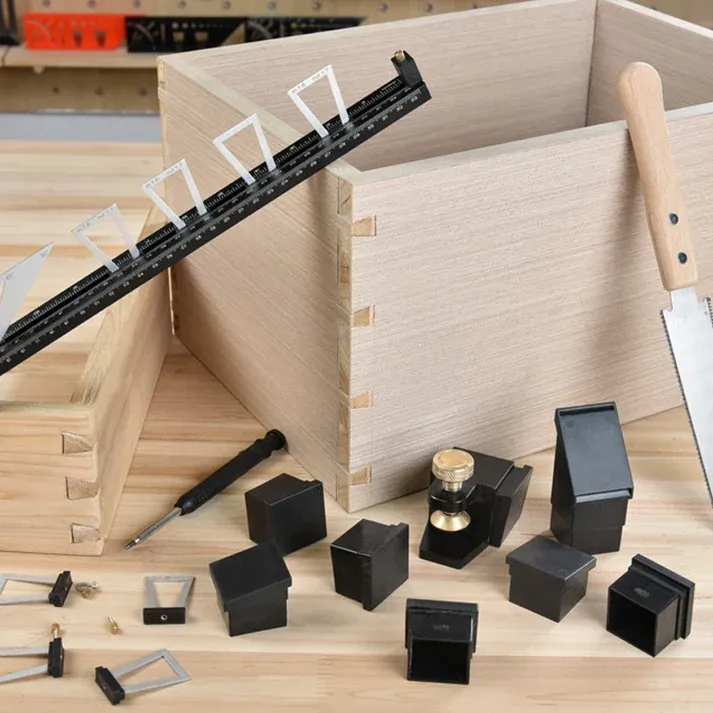

Set Quantity: 28-Piece Set

Package Includes: 1 * 28-Piece Woodworking Dovetail Marker Set

NOTES

Please verify the wood hardness before selecting the appropriate dovetail ratio to prevent joint damage.

Ensure all locking screws are tightened securely before scribing to maintain perfect alignment and accuracy.

Store the metal components in a dry environment to prevent rusting of the steel templates over time.
